Osaka Door Lever with Backplate

$300.50

$210.35
Tax included. Shipping calculated at checkout.
Color
Brushed Brass
Back Plate
Lock Type

Note: All Iver Stock comes direct from Iver please always check to confirm the item is in stock if it is needed urgently.

The Osaka lever combines rounded and flat forms with distinct edging to create a truly contemporary piece. Understated and chic, the Osaka complements daring spaces and minimalist design through its simple shape and beauty.
Forged in solid Brass

All pieces are forged from high quality, durable solid brass.

Door levers successfully tested to meet the highest durability rating (D8, 500,000 cycles) under the Australian Standard (AS4145.2: 2008)†.

All Osaka levers and backplates have been successfully fire tested .
For more details contact a member of our sales team.

This product comes with face fix wood screws and tie bolts, latches are sold separately. Euro and privacy punch outs are 85mm CTC. Half sets in this range are available fixed or operable. Please add LH or RH to the end of any code when ordering.
Need help working our LH (Left hand opening ) RH (Right hand opening ) click here
Brand :IVER

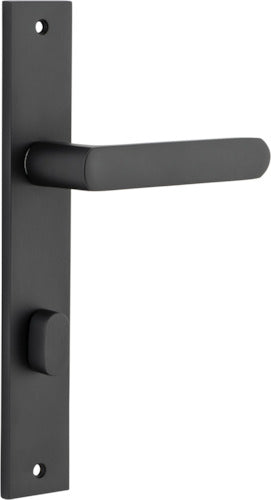

SQUARE PLATE PRIVACY SPECS
Height: 240mm
Width: 38mm
Projection: 52mm
Centre to centre: 205mm

Download Spec Sheet

SQUARE PLATE PASSAGE SPECS
Height: 240mm
Width: 38mm
Projection: 52mm
Centre to centre: 205mm




Download Spec Sheet

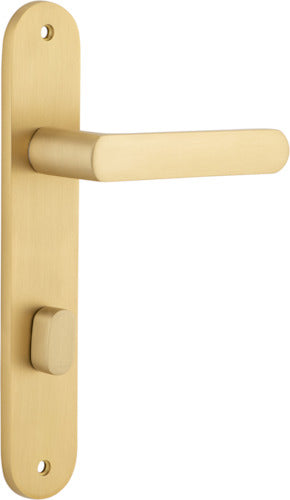

OVAL PLATE PRIVACY SPECS
Height: 240mm
Width: 40mm
Projection: 52mm
Centre to centre: 205mm




Download Spec Sheet

OVAL PLATE PASSAGE SPECS


Height: 240mm
Width: 40mm
Projection: 52mm
Centre to centre: 205mm



Download Spec Sheet

Also Note these Handles include all required fitting .

- Split Cam Tube Latch with 60 mm backset

Backset: 60mm

Download Spec Sheet

-For Privacy a  Privacy Bolt Round  also with a 60 mm backset .

Backset: 60mm

Download Spec Sheet

(please advise if you need a different size.)
